OVERHEAD DOORS & MATERIALS

At TDK, the emphasis extends beyond mere product provision; it's about delivering exceptional value to every client. The overhead door products are not just well-designed; they embody a commitment to quality and efficiency, ensuring seamless operations and enhanced safety across diverse industrial environments. TDK's dedication to excellence has earned it a reputation for reliability and performance, making it the go-to choice for businesses seeking unparalleled overhead door solutions.

DOORS

微信图片_20240416163632

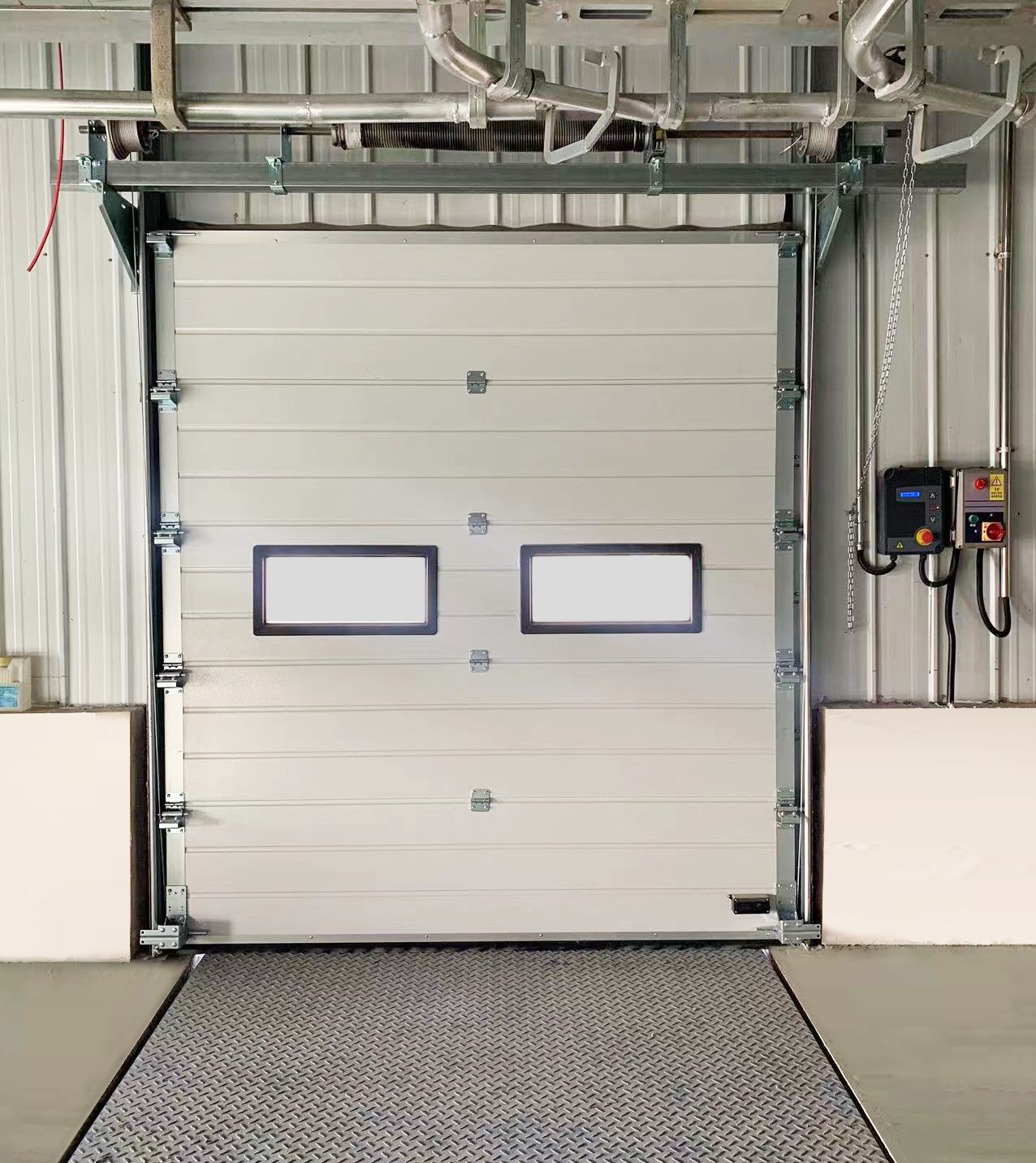

INDUSTRIAL OVERHEAD DOOR

TDK industrial overhead door is crafted from inner and outer double-layer steel plates via die casting, ensuring durability, Its surface is treated for insulation, heat preservation, dust-proofing, and wind-pressure resistance.



With a thickness of 40mm-50mm, it offers strength and insulation, while the track is reinforced with hot-dip galvanized steel for smooth operation. The external torsion spring is solid and durable, enduring over 50,000 cycles. Additionally, the lifting mode can be tailored to user preferences, ensuring seamless integration into diverse industrial settings.



Product Features:

点  Application: Interior Door/Exterior Door.

点  Frame: Cold Rolled and Baking Painted Steel/Stainless Steel.

点  Maximum: 12000*8000mm.

点  Running Speed: When it is opening: 1,2/s(Max.) When it is closing: 0,5m/s.

点  Color: White, Silver Grey, Red.

点  Safety: Wireless airbag protection is equipped.

点  Opening mode (selectable): Button, Remote controller, Ground sensor, Radar sensor and Stay cord.

点  Lifting mode: Standard & elevated & vertical.

  1. OPERATORS
  2. Our operators provide high response and precise positioning for your door. All TDK Door Components Operators are equipped with a compact and lightweight servo motor and closed-loop control.
图片5-1

N Series



Sectional Overhead Roll Up Door Operators



N40 Output torque 40N/M, work with 25.4mm (1”) keyed solid shaft.



N60 Output torque 60N/M, work with 25.4mm (1”) keyed solid shaft.

SAFETY EDGES



TDK offers a range of safety edges that are designed to provide reliable and efficient protection for high-speed doors, sliding doors, garage doors and industrial doors. The safety edges are available in both wired and wireless configurations, and are designed to be easy to install and maintain.

Wired Safety Edges
1

PE – GY2



A photo eye with a double safety beam that provides safety for doors and equipment within 15 meters.

图片3-1

W – BF5



Air sensing edge with wire.

Wireless Safety Edges
接导电胶条

WL – 101

If you want to convert your contact sensing edge to wireless, connect your sensing edge wire with WL-101. This will enable you to have a wireless contact-sensing edge.

用在工业门无线气囊

WL – 102



Connect the transmitter to a sealed air pipe or door rubber seal at the bottom or leading edge of doors. Connect the receiver to the control box. The sensitive and reliable safety edge WL-101 will work for years on your doors.

无线气囊带小门开关-2

WL – 223



When a personal door is installed inside a huge sliding or sectional door, safety becomes the top priority. The WL-223 safety edge ensures that the big door does not move when the personal door is open. It is easy to install and all wireless with TDK WL-223.

6

WL – 6S



Connect the door power to the provided receptacle to operate the rolling door, which does not have a control box. The receptacle is wirelessly connected to the transmitter, which sends a reversing signal. Once the signal is received, the receptacle will cut off the power for 6 seconds to ensure safety.

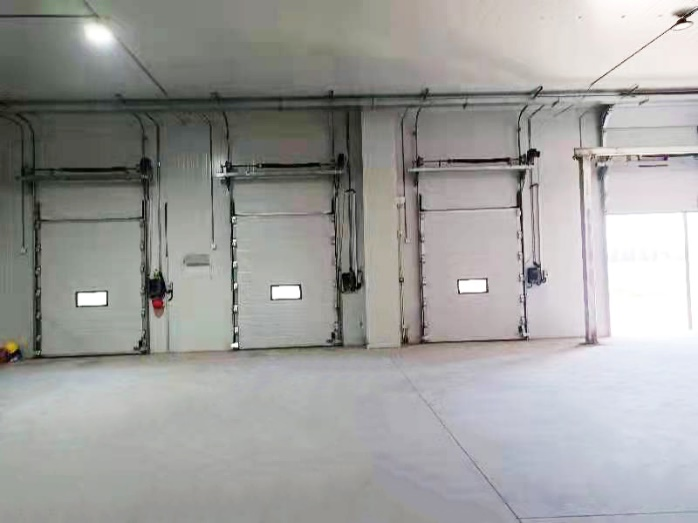

RECENT WORK

图片2-May-09-2024-03-39-23-7271-AM
